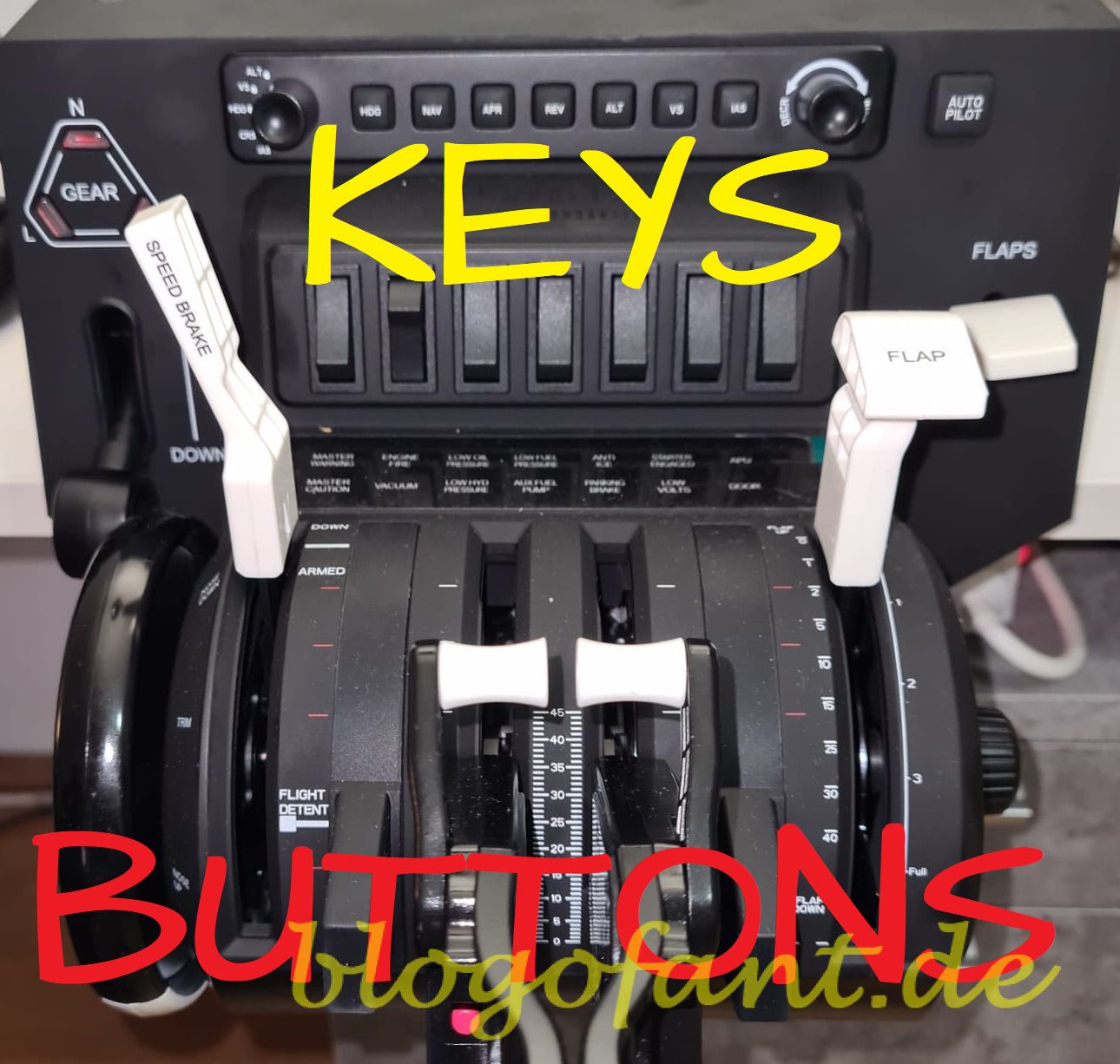

Honeycomb Bravo Throttle Quadrant – Key Maps / Button Maps

This post is about the Honeycomb Bravo Throttle Quadrant and its keymap. For the sake of clarity, I have divided them into three categories:

• AP – autopilot panel / FCU (upper level)
• SW – switches (middle level)
• SK – thrust control (lowest level)

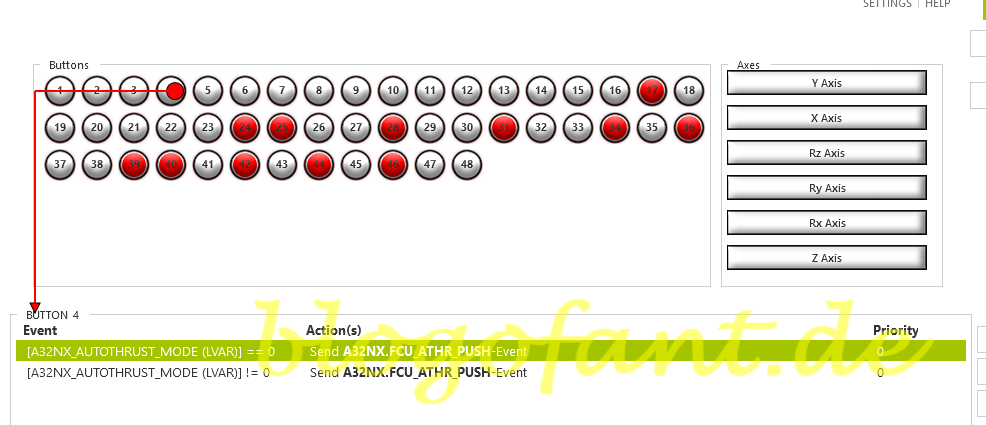

With the paid tool from Spad.Next, you can also graphically display the keyboard layout so you know which buttons are enabled/disabled.

Honeycomb Bravo Throttle Quadrant key-mapping

1. AP Button 1 – HDG Mode – Heading
2. AP Button 2 – NAV Mode – Navigation
3. AP Button 3 – APR Mode – Approach
4. AP Button 4 – REV Mode – Back Course / Reverse
5. AP Button 5 – ALT Mode – Altitude
6. AP Button 6 – VS Mode – Vertical Speed
7. AP Button 7 – IAS Mode – Indicated Airspeed
8. AP Button 8 – Autopilot Mode
9. SK Button 9 – Thrust Reverser Engine 1
10. SK Button 10 – Thrust Reverser Engine 1 / Thrust reverser Engine 2
11. SK Button 11 – Thrust reverser Engine 2 / Thrust reverser Engine 3
12. SK Button 12 – Thrust reverser Engine 4
13. AP Button 13 – INCR Knob- Clockwise
14. AP Button 14 – DECR Knob – Anticlockwise
15. SW Button 15 – Flaps increase
16. SW Button 16 – Flaps decrease
17. AP Button 17 – IAS Selector – Indicated Airspeed
18. AP Button 18 – CRS Selector – Course
19. AP Button 19 – HDG Selector – Heading
20. AP Button 20 – VS Selector – Vertical Speed
21. AP Button 21 – ALT Selector – Altitude en
22. SK Button 22 – Trim Nose Down
23. SK Button 23 – Trim Nose Up
24. SK Button 25 – Thrust Reverser Engine (Axis 1)
25. SK Button 25 – thrust reverser engine (axis 2)
26. SK Button 26 – thrust reverser engine (axis 3)
27. SK Button 27 – thrust reverser engine (axis 4)
28. SK Button 28 – Thrust Reverser Engine (Axis 5)
29. SK Button 29 – TO/GA Knob Engine 1 (Axis 2)
30. SK Button 30 – TO/GA Knob Engine 1 / Engine 2 button (Axis 3)
31. SW Button 31 – Gear Up
32. SW Button 32 – Gear Down
33. SK Button 33 – Reverse Engine ( Axis 6)
34. SW Button 34 / Button 35 – Switch 1
35. SW Button 36 / Button 37 – Switch 2
36. SW Button 38 / Button 39 – Switch 3
37. SW Button 40 / Button 41 – Switch 4
38. SW Button 42 / Button 43 – Switch 5
39. SW Button 44 / Button 45 – Switch 6
40. SW Button 46 / Button 47 – Switch 7
41. SK Button 48 – TO/GA button engine 2 / TO/GA button engine 3 (axis 3)
